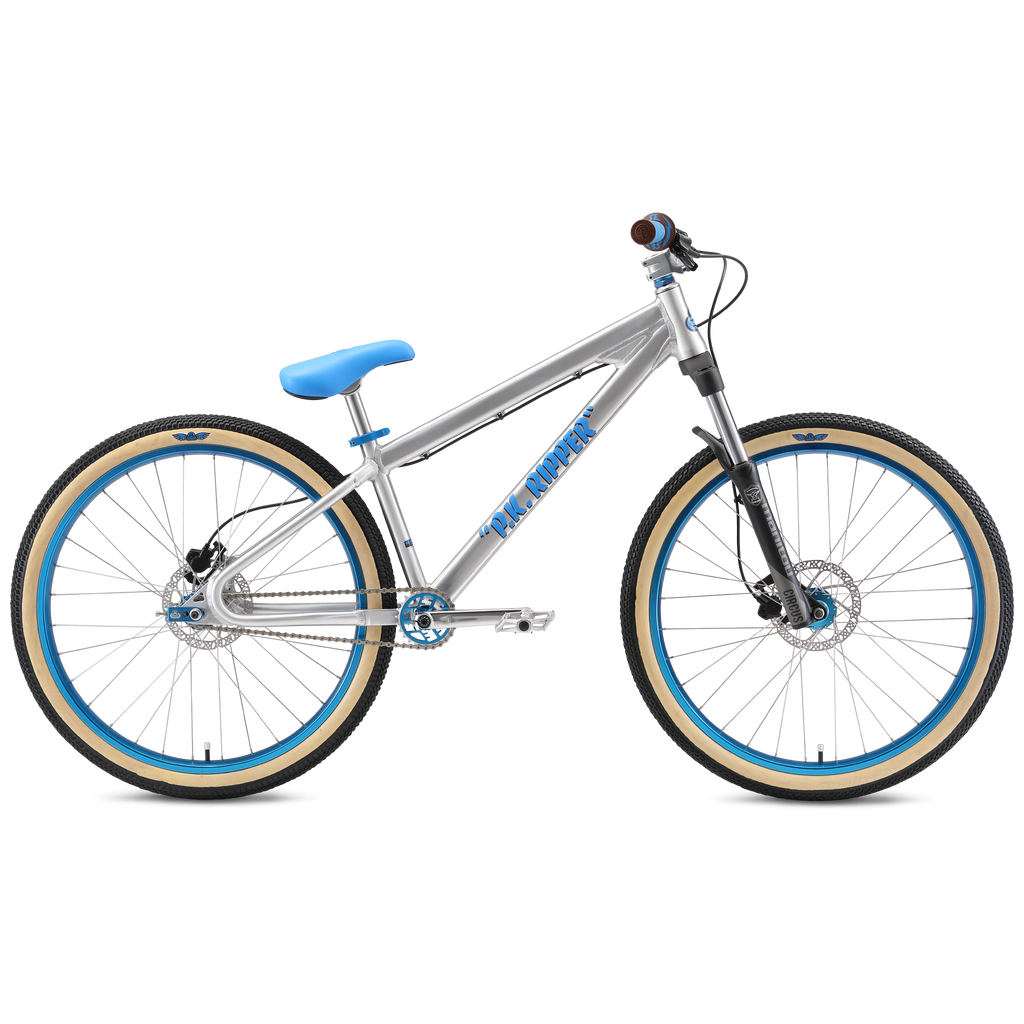

DJ Ripper 26"
Description
A PK Ripper like you've never seen before! The 26" DJ Ripper takes the design elements of the classic PK Ripper and wraps them into a 26" dirt jumper that will blow your mind. The frame features our legendary floval tubing, looptail rear end and tapered integrated head tube. The frame is then matched up with Manitou Circus Sport forks, 25-12 gearing with outboard BB, Tektro Auriga hydraulic disc brakes, 31.8mm stem & bars and an SE Pivotal seat. The dirt jumps are calling!
KEY FEATURES
- 6061 aluminum frame with floval tubing featuring a symmetrical looptail rear end and 1-1/8"-1.5" tapered integrated head tube
- Manitou Circus Sport forks with 100mm travel and 1.5" tapered steerer tube | 6061 aluminum handlebars with 31.8mm clamp area
- Tektro Auriga hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rotors
- SE 3-piece V-Ridge cranks with outboard bottom bracket and alloy SE chainring
- Authentic ODI Mushroom II grips with donuts
- External bottom bracket
- Padded SE Pivotal seat
- Vee Tire Co Two Six DJ tires
- 29.8 pounds
SPECIFICATIONS
| Suggested Rider Size | 5'3"+ (160cm+) |
| Frame | 6061 Aluminum Floval Tubing, Symmetrical Looptail Rear End, 1-1/8"-1.5" Tapered Integrated Head Tube, Seatstays Wrap,Disc Brake Tabs, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts |
| Fork | Manitou Circus Sport, 100mm Travel, 1.5"Tapered Steerer Tube, Fluid Flow Dampinng, Firm Spring |
| Crankset | SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Racing Sprocket |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | Alloy 32H Nutted Hubs, Sealed Rear, 100mm Front Hub & 135mm Rear Hub, w/ 35mm Double-Wall Rims, 12T Cassette, Stainless Spokes |
| Tires | Vee Tire Co Two Six DJ, 26 x 2.25" Front, 26 x 2.125" Rear |
| Brakeset | Tektro Auriga, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors |
| Brake Levers | Tektro Auriga, 2-Finger Alloy, Front & Rear |
| Headset | Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| Handlebar | 6061 Aluminum, 29" x 2.5", 10° Backsweep, 1° Upsweep, 31.8mm Clamp Area |
| Stem | Alloy Front Load, Light Weight Cutouts, 31.8mm Clamp, 40mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts |
| Seat | SE Pivotal Seat w/ Padding |
| Seatpost | Pivotal Alloy, 27.2mm |
| Seat Clamp | Quick Release Seat Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | Alloy Valve Caps, SE Chain Tensioners |
| Weight | 29.8 lbs / 13.51 kgs |
GEOMETRY
| A | Top Tube, Actual | 22.8" | |||||||||
| B | Seat Tube, Center To Top | 12.8" | |||||||||
| C | Seat Tube Angle | 71° | |||||||||
| D | Head Tube Angle | 69° | |||||||||
| E | Chainstay Length | 15.4" | |||||||||
| F | Wheelbase | 41.6" | |||||||||
| G | Bottom Bracket Height | 13.2" | |||||||||
| H | Standover | 29.5" | |||||||||
| Suggested Rider Size | 5'3"+ (160cm+) | ||||||||||
| Stem | 40mm | ||||||||||
| Handlebar Width | 29" | ||||||||||
| Crank | 175mm | ||||||||||
| Wheel Size | 26" | ||||||||||
| Seat Post Diameter | 27.2mm |
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
Customer Reviews
Cranks and headset keep coming loose. The breaks have has a weird watery noise from the beginning and they recently stopped working in all. Just by a different dirt jumper than this.
Hey Ty,
Thanks so much for leaving this review - we're sorry to hear that you're having trouble with your DJ Ripper. Our tech team would be happy to help you troubleshoot any issues that you're having. Please contact us at customerservice@sebikes.com for further assistance.
this is the best bike I've had. it's not super easy to wheelie, but you will get the hang of it. Its super light and looks awesome. Again, you need to buy it is great!
It has been a great bike for me... My only complaint is the seat/grip combo aren't my style so that was an easy fix. Also, you can upgrade the forks to rebound adjustable with lockout with a simple part from manitou(hayes bicycles)... It is the damper out of the comp fork. Part#141-26532-K006 ... way worth it for only an extra 40-70$ depending what bike shop you go through. This bike rips! you will love it
If you like jumping off roading and cruising this is you this bike is very light and nimble love that very easy to stiffin the shocks from bouncy to stiff in a matter of seconds simple turn of a dial n your there this bike is definitely a comfortable ride and don't see as many out there but everyone always ask to ride it lol I love it and glad I could add it to the collection
Got this as a gift gold and black it's sick only thing cuz I'm a big guy was that I put a beach cruiser seat on it so I can go on long rides and hit the cliffs
