Gaudium
About

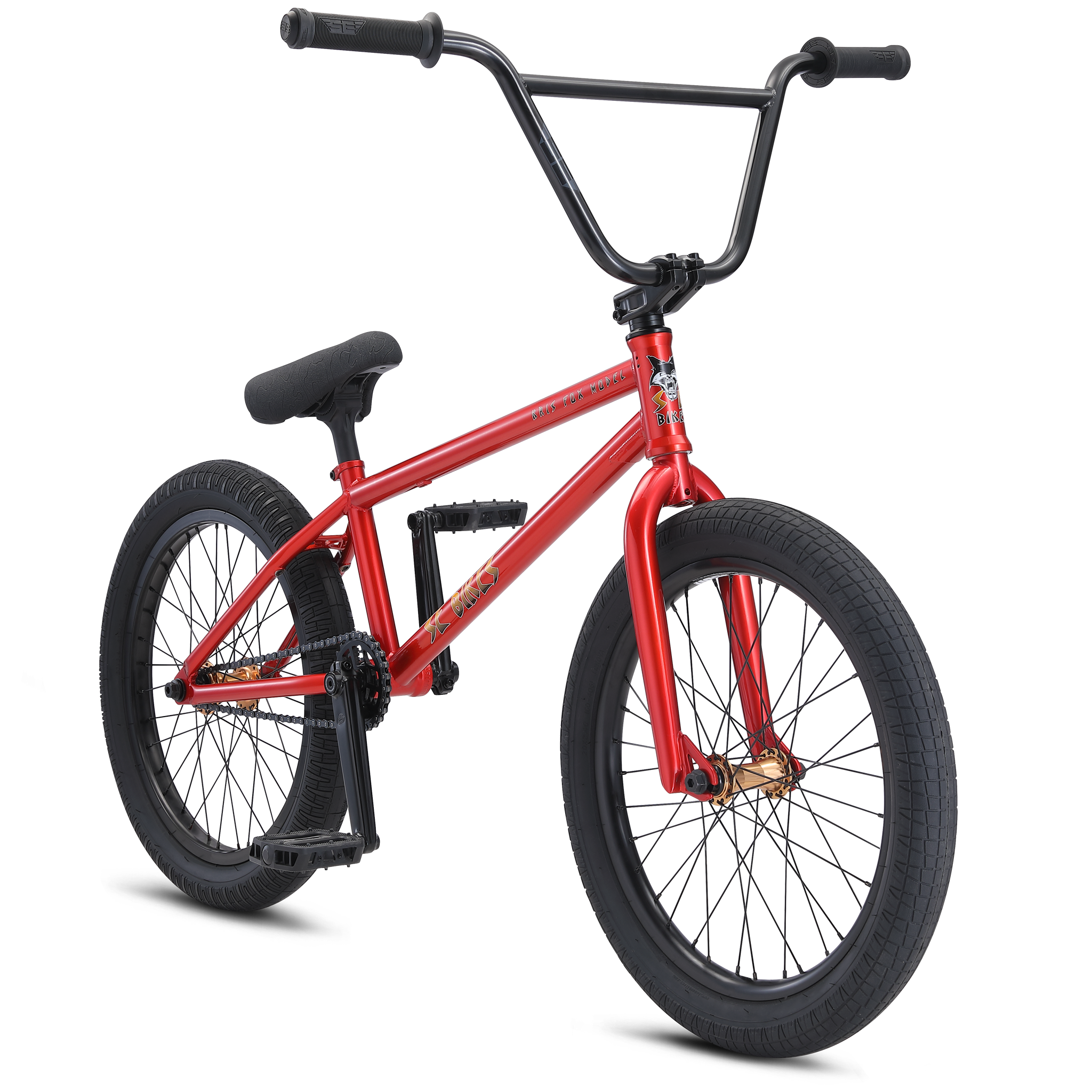

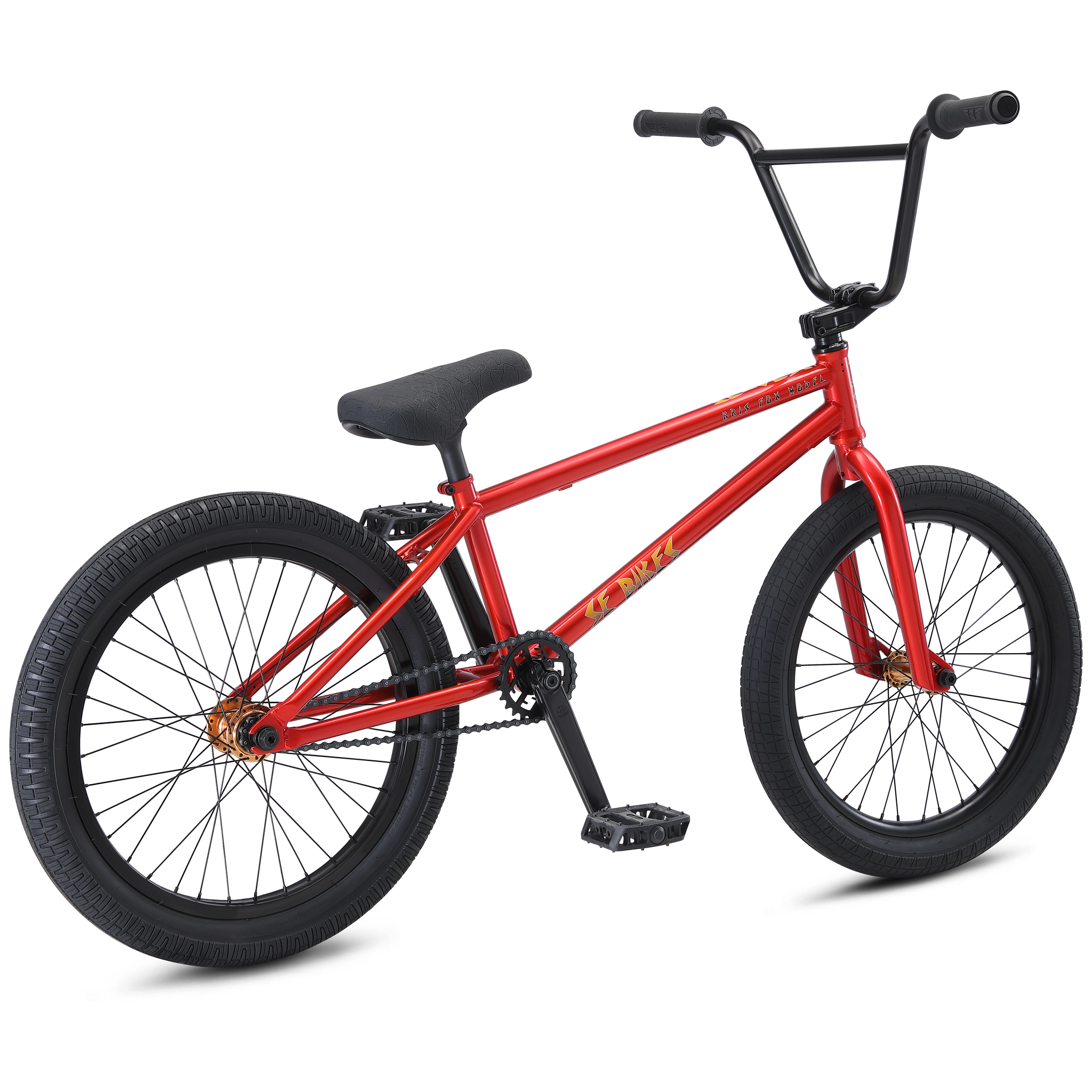

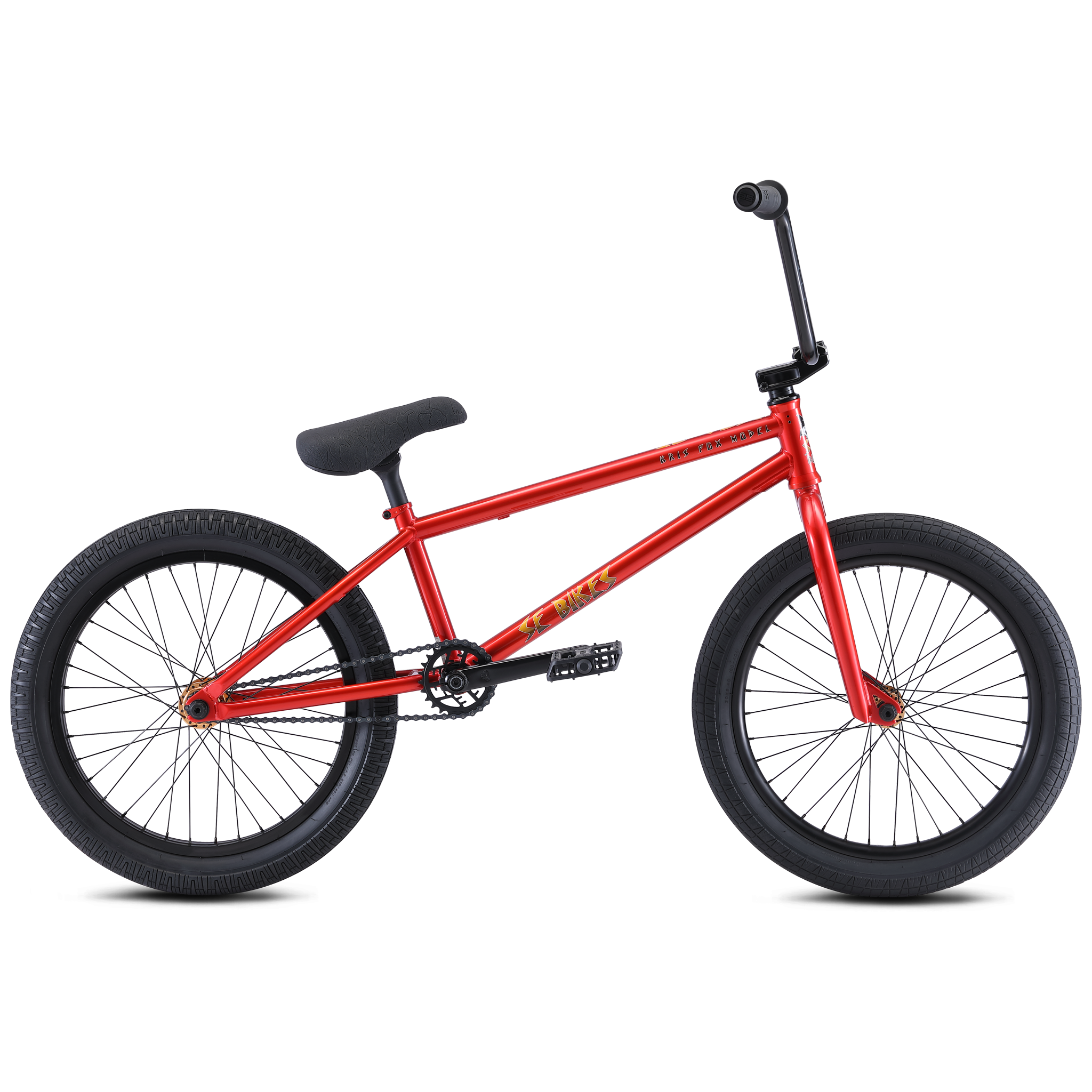

If you’ve ever seen Kris Fox ride, you know that he needs a bike that can keep up with his incredible speed and insane heights. And his signature Gaudium does just that. This stylish bike features a double-butted main frame, female axle hubs, Alienation rims, and extra-wide 2.4” tires. This bike is built to blast and take any abuse you can throw at it.
Click here to see assembly instructions for your new bike.
Key Features
- Kris Fox signature model, 100% Cr-Mo, double-butted main frame, integrated head tube, integrated seat clamp, machined mid-bottom bracket, micro dropouts, removable cable guides and brake mounts
- Full Cr-Mo tapered-leg SE forks with cut-out clearance for pegs
- SE Pivotal seat with lightweight nylon Pivotal seatpost
- SE 3-piece V-Ridge cranks with 25-9 micro gearing and 6061 aluminum SE sprocket
- Alienation Deviant and 440 double wall rims
- Innova Mimosa 20” x 2.4” front tire & Innova Big Slick 20” x 2.4” rear tire
- Rear hub with 4-sealed bearings and female axle, front hub with 2-sealed bearings and female axle
- Cr-Mo SE Powerwing bars
- 24.9 pounds
COVID-19
COVID-related supply issues have caused some bike specifications to differ from what is listed. Please check with your local SE dealer for the most up to date specifications on the bikes they have in their stores.
Specifications
Suggested Rider Size | 5'3"+ (160cm+) |
Color(s) | Red Fox |
Frame | Kris Fox Signature Model, 100% Cr-Mo, Double-Butted Main Frame, Integrated Seat Clamp, Integrated Head Tube, Externally Machined 73mm Mid BB, Removable Cable Guides & Brake Mounts |
Fork | Full Cr-Mo, Tapered Legs, 3/8" Dropouts w/ 32mm Offset |
Crankset | 3-pc Cr-Mo, 175mm, SE V-Ridge Cranks, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Sprocket |
Pedals | SE Nylon Fiber Platform |
Chain | KMC S1 |
Wheelset | SE Alloy 36H 3/8" Sealed Female Front & 14mm 4-Sealed Bearing Female Rear Hubs w/ Alienation Deviant Front & Alienation 440 Rear Double-wall Rims, 9T Driver |
Tires | Innova Mimosa 20" x 2.4" Front, Innova Big Slick 20" x 2.4" Rear |
Brakeset | Z-Star RX-935D, Clearance For Wide Tires, Soft-Compound Shoes |
Brake Levers | Promax FS-339, 2-Finger Hinged Alloy |
Headset | FSA Orbit CE, Sealed 1-1/8" Integrated |
Handlebar | Cr-Mo SE Powerwing Bar, 30" x 9", 10° Backsweep, 1° Upsweep |
Stem | SE Top-Load Alloy, Lightweight External Cutouts, Hidden Top Cap, 50mm Reach |
Grips | SE DSP Grips w/ Rubber SE End Plugs |
Seat | SE Pivotal Seat w/ Padding |
Seatpost | Pivotal Lightweight Nylon & Fiberglass, 25.4mm |
Seat Clamp | Integrated |
Weight | 24.9 lbs / 11.29 kgs |
*Specifications subject to change without notice
Geometry

A | Top Tube, Actual | 21" | |||||||||
B | Seat Tube, Center To Top | 9.5" | |||||||||
C | Seat Tube Angle | 71° | |||||||||
D | Head Tube Angle | 75° | |||||||||
E | Chainstay Length | 13.7" | |||||||||
F | Wheelbase | 36.3" | |||||||||
G | Bottom Bracket Height | 11.5" | |||||||||
H | Standover | 22.7" | |||||||||
Stem | 50mm | ||||||||||
Handlebar Width | 28.5" | ||||||||||
Crank | 175mm | ||||||||||
Wheel Size | 20" | ||||||||||
Seat Post Diameter | 25.4mm |
