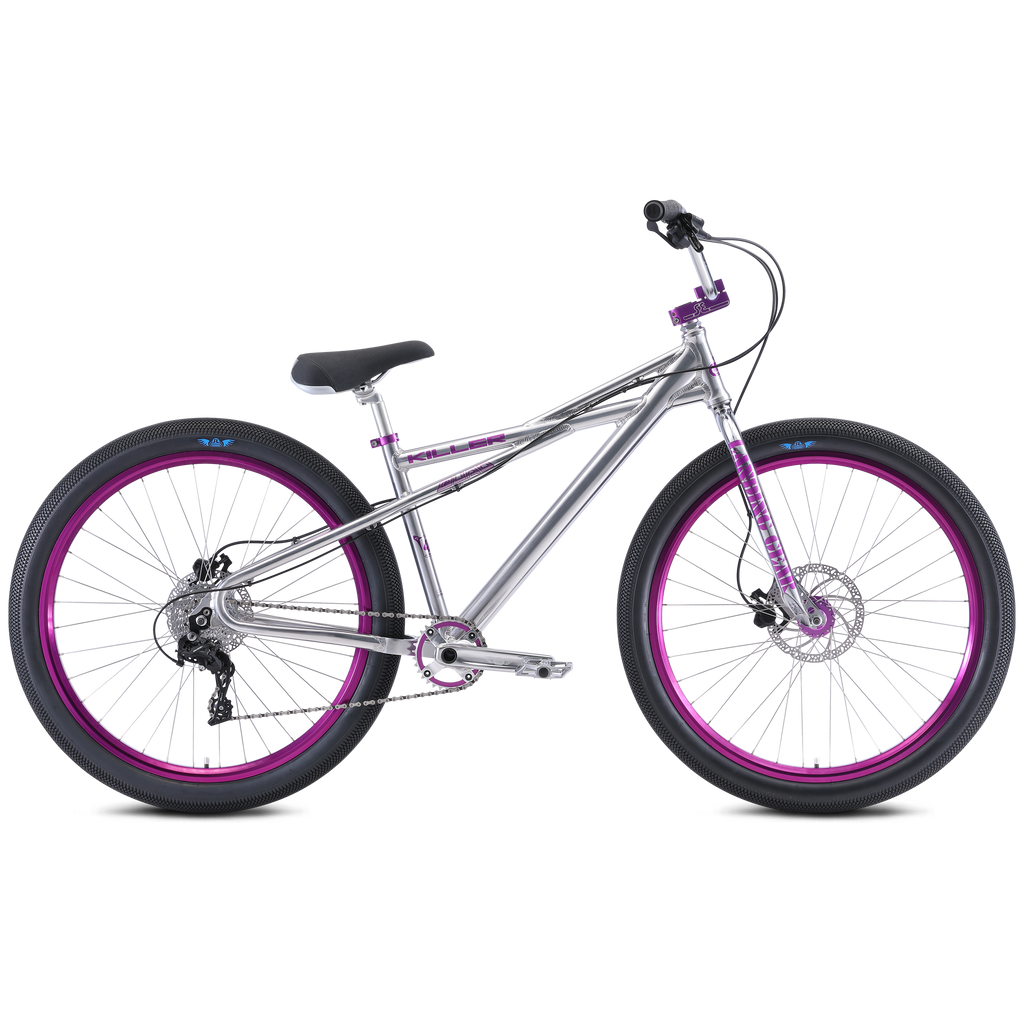

Killer Quad 27.5”
Now this is one KILLER ride! The all-new 27.5” Killer Quad is perfection on wheels. This bike has everything you’d want and more. It is built around a unique Quad frame design featuring an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. It comes equipped with a microSHIFT XLE 1x10 drivetrain, Tektro hydraulic disc brakes, and wide 27.5” x 2.5” Vee Speedster tires. When you want to go for a killer ride, this is definitely the bike to have.
- 6061 Aluminum Killer Quad frame with oversized downtube, integrated headset, and looptail rear end
- Full Cr-Mo Landing Gear forks |SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring
- FSA Orbit CE integrated sealed bearing headset
- Vee Tire Co x SE Racing 72tpi Speedster 27.5" x 2.5" tires
- MicroShift XLE RD-M61S 1x10 short-cage derailleur
- Sealed-bearing rear alloy hub with double-wall rims and microSHIFT 11-32T 10-speed cassette
- Tektro hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
- SE Flyer seat with bottle opener
- 33.9 pounds
|Suggested Rider Size||5'3"+ (160cm+)|
|Frame||6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger|
|Fork||Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts|
|Crankset||SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 32T Alloy Chainring|
|Pedals||Wellgo Low-profile Platform|
|Rear Derailleur||MicroShift XLE RD-M61S, 1x10, Short Cage|
|Shifters||MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever|
|Cassette||MicroShift XLE CS-H100, 10-speed, 11-32T|
|Wheelset||Alloy 36H Nutted Hubs, 135mm Sealed Rear Hub, 110mm Front Hub, Double-wall Rims, 11-32T 10-speed Cassette, Stainless Spokes|
|Tires||Vee Tire Co x SE Racing Speedster, 72TPI, 27.5" x 2.5" Front & Rear|
|Brakeset||Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor|
|Brake Levers||Tektro HD-M285, 2-Finger Alloy, Front & Rear|
|Headset||FSA Integrated Orbit CE, Sealed 1-1/8"|
|Handlebar||Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep|
|Stem||Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach|
|Grips||SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs|
|Seat||SE Flyer Seat w/ Custom SE Bottle Opener Brace|
|Seatpost||Micro-Adjust Alloy, 27.2mm|
|Seat Clamp||SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter|
|Accessories||Alloy Valve Caps, Removable Derailleur Hanger|
|Weight||33.9 lbs / 15.39 kgs|
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
