PK Ripper Super Elite XXL
Description

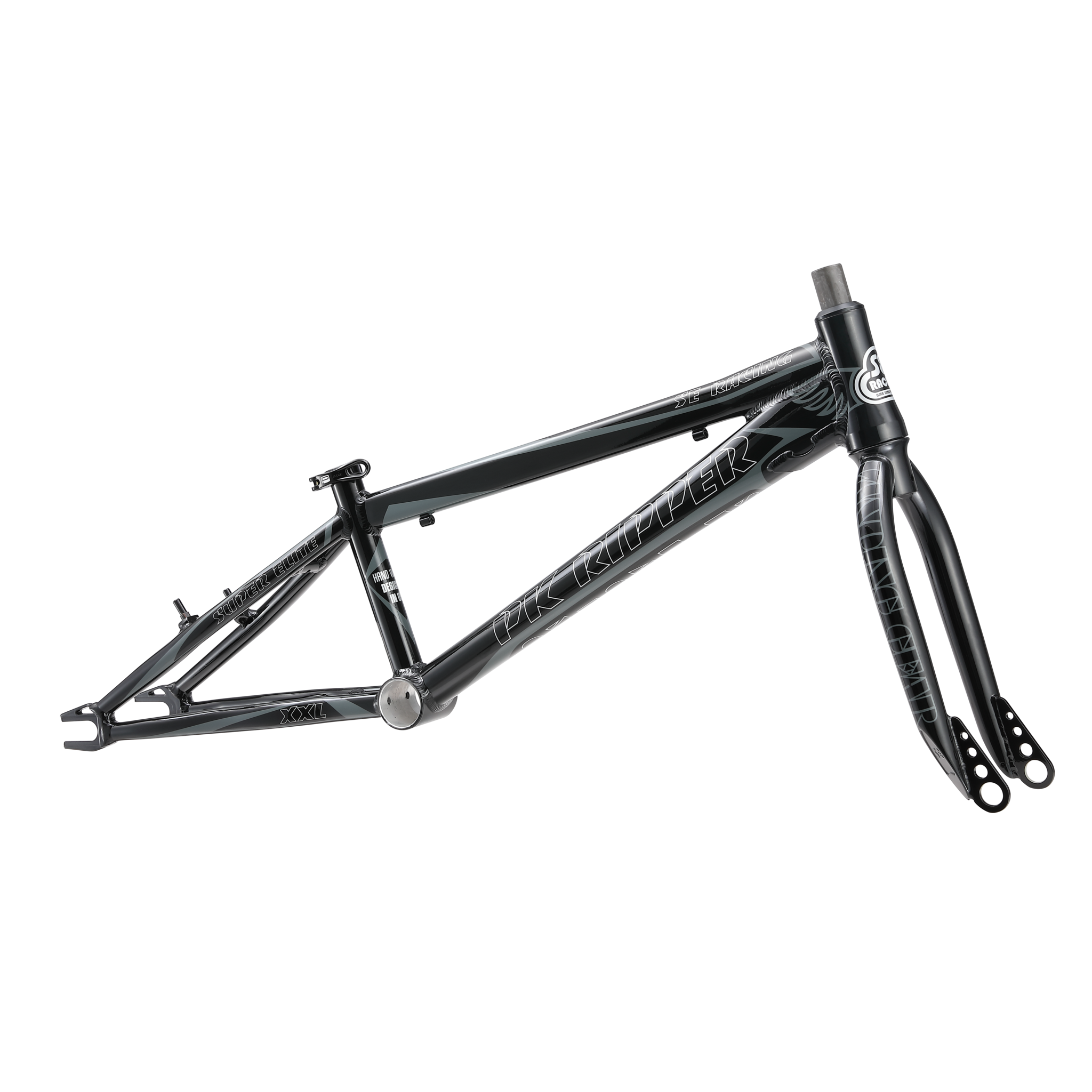

By far the most advanced PK Ripper frame of all time. The PK Ripper Super Elite XXL frame with a 21.7" top tube comes equipped with features such as a tapered headtube, PF30 bottom bracket and 20mm dropouts. This is the perfect frame to match up with high-end race parts to take you to the top of the podium.
Ship to Home Return Policy
Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.
Ship to Store Return Policy
Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.
Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.
KEY FEATURES
- Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube, 1-1/8” – 1.5” tapered head tube, tapered rear stays, 20mm 3-D forged rear dropouts with built-in chain tensioners and PF30 bottom bracket for maximum stiffness
- Cr-Mo Landing Gear forks featuring tapered legs and closed-end dropouts
- Comes equipped with three different sets of chain-tensioner plates to accept hubs with 20mm, 15mm or 3/8” axles
- Promax QR-1 quick release seat clamp
- Sealed bearing integrated headset
- 3.5 pound frame weight
SPECIFICATIONS
| Suggested Rider Size | 5'7"+ (170cm+) |
| Frame | Super Elite Design, Lightweight 6066 Aluminum Floval Tubing w/ Bi-Oval Down Tube, 1-1/8"-1.5" Tapered Integrated Head Tube, PF30 Bottom Bracket, 68mm Wide BB, Tapered Rear Stays, 3D 20mm Dropouts, Built-in Chain Tensioners |
| Fork | Super Elite Landing Gear, Full Cr-Mo, Tapered Steerer Tube, Tapered Legs, 20mm Closed Dropouts |
| Headset | Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| Seat Clamp | Promax Quick Release, 31.8mm Inner Diameter |
| Accessories | 20mm, 15mm & 3/8" Chain Tensioner Adapters Included |
| Weight | Frame: 3.6 lbs / 1.63 kgs, Fork: 2.5 lbs / 1.13 kgs |
GEOMETRY
| A | Top Tube, Actual | 21.7" | |||||||||
| B | Seat Tube, Center To Top | 9.5" | |||||||||
| C | Seat Tube Angle | 71° | |||||||||
| D | Head Tube Angle | 74° | |||||||||
| E | Chainstay Length | 14.9" | |||||||||
| F | Wheelbase | 38.6" | |||||||||
| G | Bottom Bracket Height | 11.5" | |||||||||
| H | Standover | 22.1" |
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
